100G 802.3_2015 BERT and Analyzer
Model No: PGY-100G-802.3_2015
PGY-100G-802.3_2015 BERT and Analyzer is the instrument that enables the design and test engineers to test the 100G Ethernet interface for its BER by configuring PGY-100G as 100G 802.3 traffic generator with error injection and error correction capability in real-time to validate the overall performance of the interface.
Key Protocols
- BERT
-
Free Online Technical Support
-
Free Software Updates
-
Global Sales Support
-
Evaluation Units Available
- Key features
- Specifications
- Fully Compliant to IEEE802.3bm – 2015 Standard
- Flexibility to transmit Fixed, PRBS, and Incremental pattern
- Reed Solomon Encoder, Decoder as per standard
- Random and Burst Error injection. The error rate is programmable
- Error injection in RS Layer and PCS after RS encoder
- Transmit and Receive Statistics include RMON and extensive error counts
- Option to bypass scrambling, RS encoder

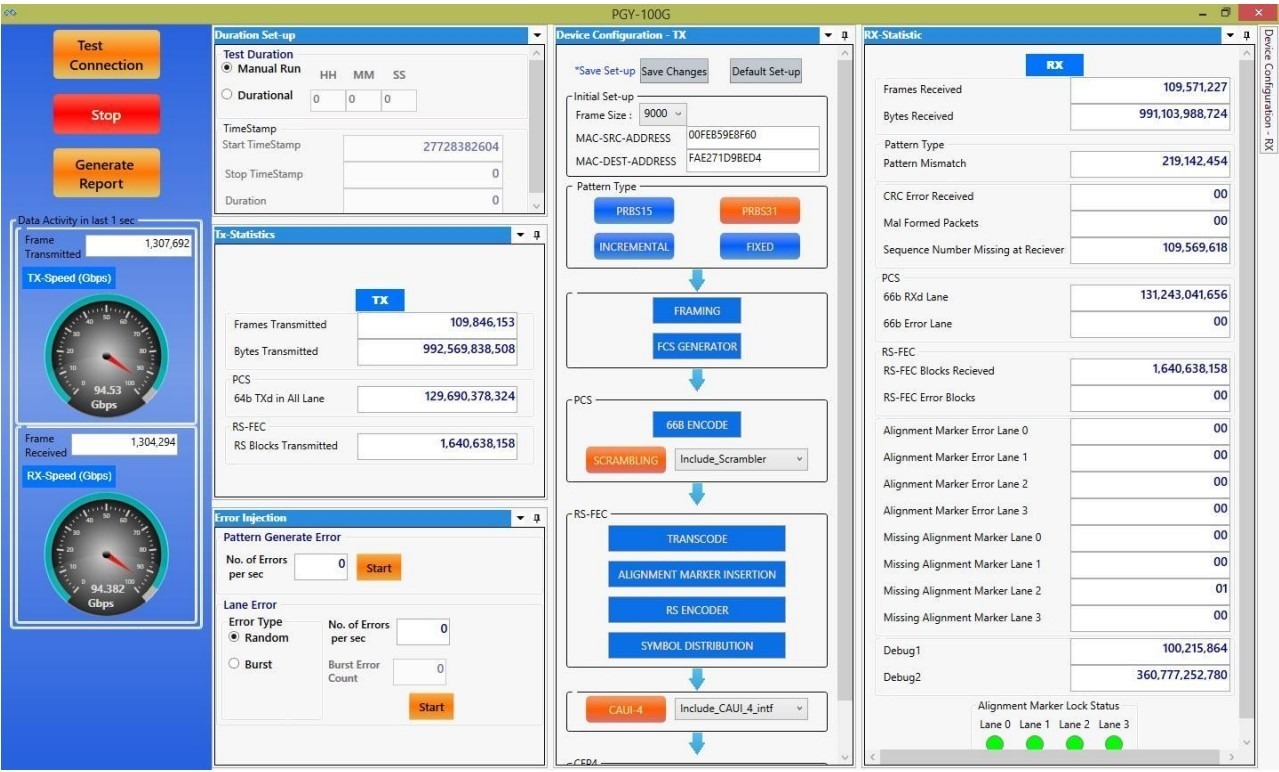

- Real-time Transmitter and Receiver throughput display with a programmable frame rate
- Fixed frame sizes from 64 bytes to 9600 bytes or Random Size.
Products Specifications
| Fixed Payload Patterns | Fixed Data Pattern |
| Variable Payload Pattern | PRBS31; PRBS15; Incremental Pattern |
| Interface | CFP (Two Ports) upgradable to 4 ports |
