SoC based eMMC Tester

Model No: eMMC/SD

eMMC/SD Tester is a dedicated industry’s first eMMC/SD card tester-based system on chip (SOC). Users can write different protocol tests for eMMC4.41/4.51/5.0 and 5.1 (HS400) and SD3.0 (UHS-I) to test for protocol specifications.

PGY-eMMC/SD-Tester card provides the flexibility to write custom test cases based on different used cases and extensively test the eMMC devices and SD card to ensure reliability of the devices to meet different used cases.

Key Protocols
  • eMMC, SD, SDIO
  • Free Online Technical SupportFree Online Technical Support
  • Free Software UpdatesFree Software Updates
  • Global Sales SupportGlobal Sales Support
  • Evaluation Units AvailableEvaluation Units Available
Request for Quote Request for Demo
  • Key features
  • Specifications
  • Design and run custom test cases tests for eMMC 4.41, 4.51, 5.0, and 5.1 (HS400), and SD 3.0 (UHS-I) to validate protocol specifications.
  • SoC-Based Testing with Embedded OS: Control the tester via PC with Windows and Linux compatibility, and benefit from embedded SPI flash booting, ensuring complete device access from initialization.
  • Compatible with eMMC 4.41, 4.51, 5.0, and 5.1 (HS400).
  • Supports SD 3.0 (UHS-I)
  • Host emulation for realistic testing scenarios.
  • Host Connection via USB 3.0 or 1 GbE Ethernet.
  • Comprehensive support for all eMMC and SD commands
Read More...

SoC based eMMC-SD Protocol Tester key feature

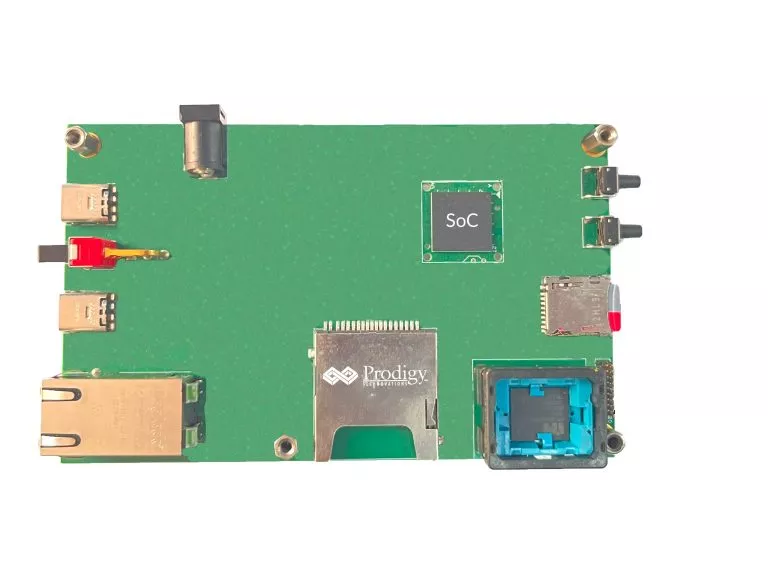

SoC based eMMC/SD Protocol Tester

Prodigy Technovations has developed SoC based eMMC/SD tester card which is controlled using PC using windows/Linux OS. SoC based eMMC/SD card is booted using the linux OS and by default card boots from embedded SPI flash. By booting from SPI flash, provides completes access to test devices such as eMMC and SD card from the initialization state.

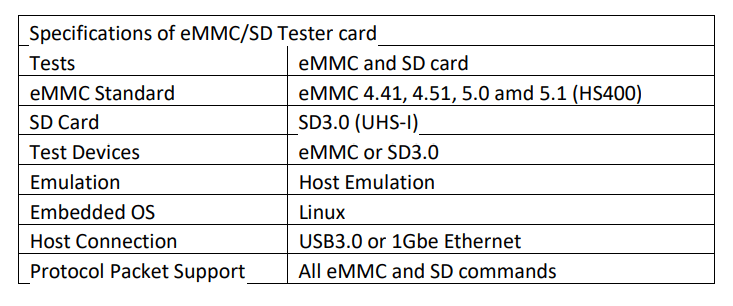

SoC based eMMC-SD Protocol Tester Specification
